Key Features of Bridge-Type Scraper Reclaimers in Bulk Material Handling

05 Jun.2025

In large-scale industrial sectors such as mining, cement, power generation, and metallurgy, efficient bulk material handling is a crucial component of streamlined operations. One of the most reliable and widely used machines in bulk storage yards is the bridge-type scraper reclaimer. Designed to ensure continuous, automated recovery of bulk materials like coal, limestone, and iron ore, these reclaimers offer both consistency and high throughput in demanding environments.

This blog takes an in-depth look at the design, functionality, and advantages of bridge-type scraper reclaimers—and highlights the innovative contributions of Dadi, a leading enterprise specializing in bulk material handling systems and advanced metallurgical equipment.

What Is a Bridge-Type Scraper Reclaimer?

A bridge-type scraper reclaimer is a large, gantry-mounted machine used for reclaiming material from stockpiles in open or covered storage yards. It is typically employed in blending beds where consistent material homogeneity is required before further processing.

The reclaimer works by moving a bridge (or gantry) across a pile while a scraper chain or blades extract material layer by layer. This design is especially effective for building blending piles and achieving uniform material flow.

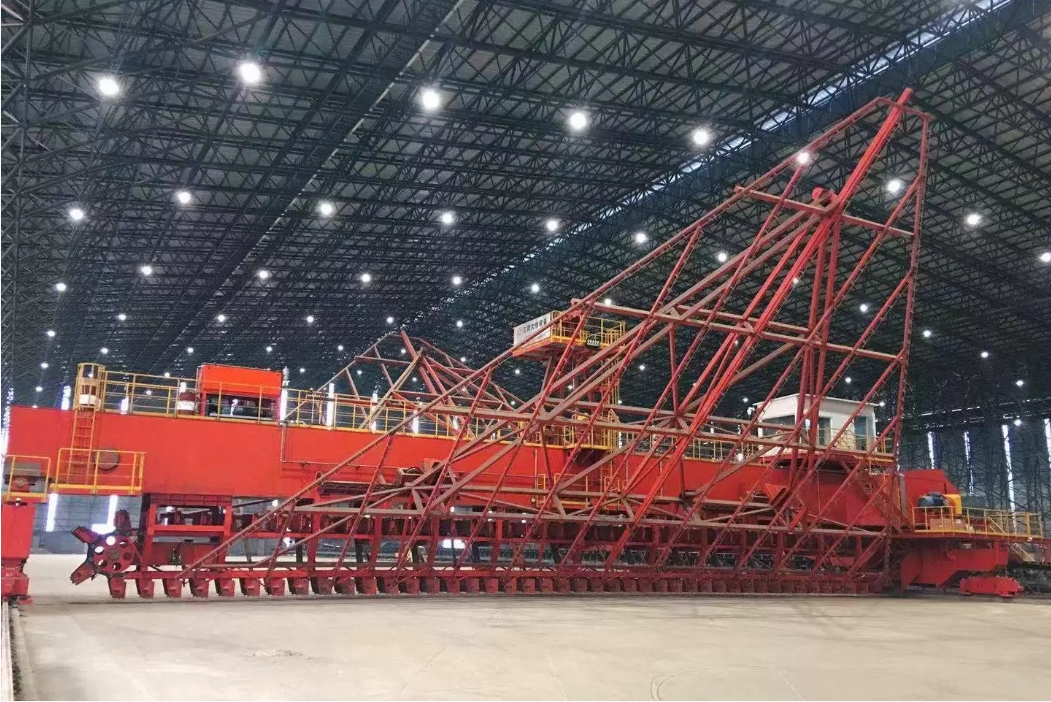

Bridge-type Scraper Reclaimer

Key Features and Functional Components

1. Gantry Bridge Structure

The bridge spans across the width of the stockpile and is supported by two end carriages traveling on rails. The gantry's robust design ensures structural stability and long service life, even under high load and outdoor conditions.

2. Scraper Chain Assembly

The heart of the system, the scraper chain moves transversely across the pile face to reclaim material. This mechanism is designed for:

High reclaim efficiency

Low operational noise

Gentle material handling, preserving grain size and minimizing dust

3. Travel Drive System

The gantry is equipped with a synchronized drive system on both ends, allowing precise and smooth movement across the pile. Integrated sensors ensure safe, accurate positioning and prevent misalignment or skewing.

4. Height Adjustment Mechanism

Some models allow for automatic or manual height adjustment of the scraper arm or boom, optimizing the reclaiming angle and accommodating pile height variations.

5. Automation and Control Systems

Modern bridge-type reclaimers come equipped with PLC-based or DCS-integrated control systems for:

Fully automated operation

Remote diagnostics and monitoring

Real-time tracking of reclaiming progress

Safety interlocks and emergency shutdown protocols

6. Blending Functionality

A key benefit of the bridge-type design is its ability to homogenize material. Reclaiming thin layers from the entire cross-section of the stockpile ensures a consistent blend of varying raw material properties.

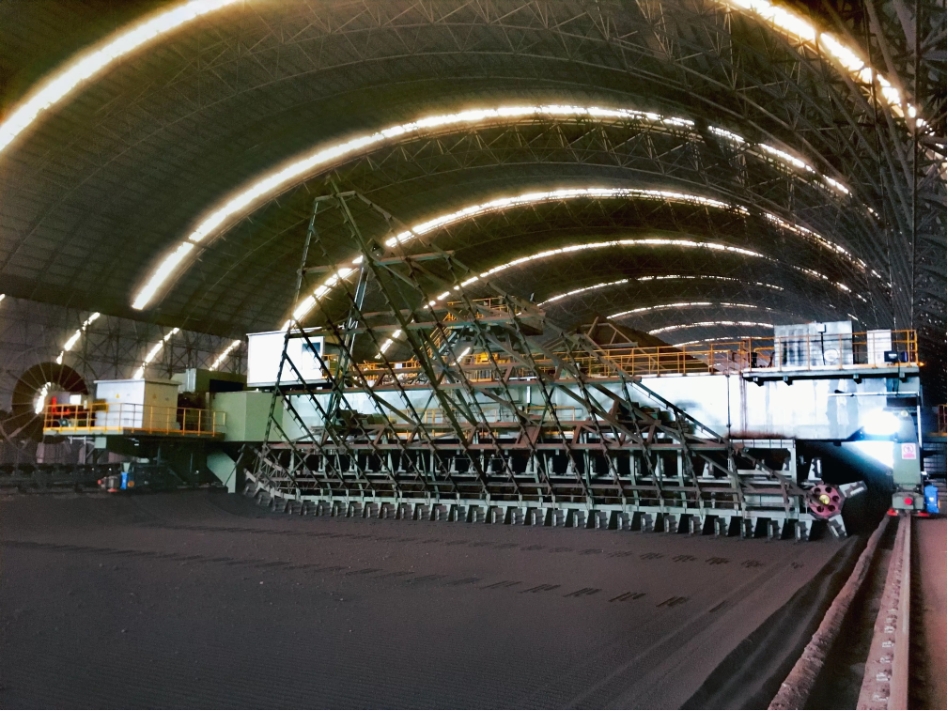

Bridge-type Scraper Reclaimer

Dadi: A Trusted Innovator in Bulk Handling Solutions

Dadi has established itself as a premier provider of bulk material conveying equipment and high-end metallurgical machinery. With decades of experience and technical expertise, the company has delivered bridge-type scraper reclaimers that meet the highest standards of reliability, efficiency, and safety.

Dadi’s Solutions Are Known For:

Custom Engineering: Tailored reclaimers to fit client-specific yard layouts, material types, and capacity requirements.

High Durability: Use of wear-resistant components and corrosion-protected steel structures for extended outdoor use.

Intelligent Automation: Integration of AI-based control for predictive maintenance and performance optimization.

Environmental Stewardship: Low-dust design and energy-efficient motors support greener operations.

By combining proven engineering practices with cutting-edge technologies, Dadi helps clients in the cement, steel, power, and mining industries achieve smooth, cost-effective, and sustainable bulk material handling.

Advantages of Using Bridge-Type Scraper Reclaimers

Consistent Feed Rate: Supports stable downstream processing in mills, kilns, or smelters.

Material Homogenization: Blending function improves product quality and process stability.

Reduced Manual Labor: Fully automated systems minimize operator intervention.

Low Maintenance: Fewer moving parts compared to other types of reclaimers; easier servicing.

Space Efficiency: Ideal for enclosed storage yards or limited horizontal space applications.

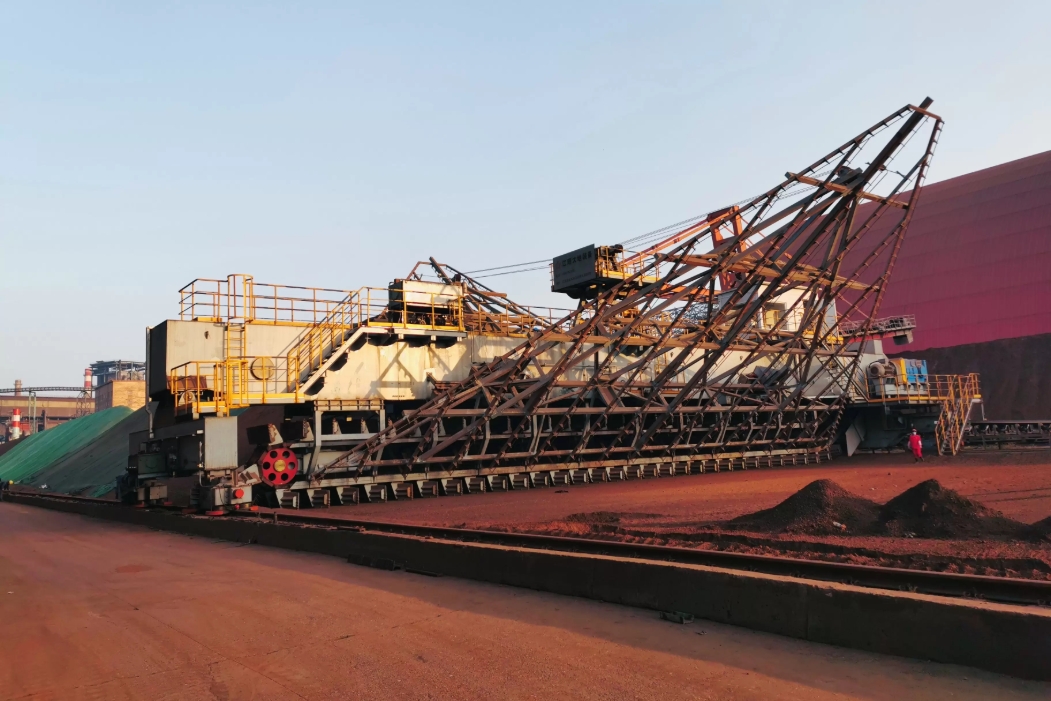

Bridge-type Scraper Reclaimer

Conclusion

Bridge-type scraper reclaimers are indispensable for industries that rely on consistent and large-scale bulk material recovery. With their ability to provide continuous, uniform reclaiming and blending, these machines play a vital role in ensuring efficient plant operations.

Dadi’s expertise in designing and manufacturing advanced scraper reclaimers and conveying systems makes it a trusted partner for enterprises looking to modernize and optimize their material handling infrastructure. As industries continue to move toward greater automation and sustainability, solutions like Dadi’s will remain at the core of innovation in bulk material logistics.
